1. Function:
STC series Mast Climbing Platform is the special equipment for hoisting workers at out-wall of building. It is used for painting and cleaning out -wall, sticking face brick, welding steel structure of out-wall, and installation of screen wall.
2. Technical Data of Mast climbing platform：
| NO. | Technical Data | Single mast | Twin mast | |
| 1 | Rated load(Platform max. length) | 1000 kg | 1400 kg | |
| 2 | Max. people | 3人 | 6人 | |
| 3 | Rated Lifting Speed | 8.3 m/min | ||
| 4 | Max. Working Height(m) | 100 m | ||
| 5 | Max. Independent Height(m) | 7.5 m | ||
| 6 | Max. Length(m) | 8.67 m | 23.34 m | |
| 7 | Standard width(m) | 1.5 m | ||
| 8 | Max. width(m) | 2.5 m | ||
| 9 | Interval distance of tie-in(m) | 6 m | ||
| 10 | Size of mast section(L*W*H) | 1508×500×500 mm | ||
| 11 | Motor | Model | YZZ132 S1-4 | |
| Output Power | 2×5.5 kW | 4×5.5 kW | ||
| Rated Rotation Speed | 1400 r/min | |||
| Rated Electricity | 13.5 A/台set | |||
| 12 | Brake | Brake moment | 100 N.m | |
| Exciting Voltage | DC 195 V | |||
| 13 | Speed Reducer | Model | TU 65 C/125-63 | |
| Transmission Ratio/Output Torque | 1:63 / 1300 N.m | |||
| 14 | Power | 3P、380V、50Hz | ||
| 15 | Self-weight | Mast Section（100m/H） | 67×96 kg | 134×96 kg |
| Driving Platform | 662 kg | 2×662 kg | ||
| Short Platform (0.8m) | 2×88 kg | 4×88 kg | ||
| Long Platform(1.5m) | 4×143 kg | 10×143 kg | ||
| Tie-in（100m/H） | 16×37 kg | 32×37 kg | ||
| Pedestal | 180 kg | 2×180 kg | ||
| Others | 110kg | 2×110 kg | ||
| Whole Weight（100m） | 8720 kg | 17730 kg | ||
Platform Rated Load
| Platform Type | Platform Length（m） | Rated Load （kg） |
| Single mast | 2.67（2×0.8+1.07） | 1600 |
| 4.07（2×1.5+1.07） | 1500 | |
| 7.07（4×1.5+1.07） | 1200 | |
| 8.67（2×0.8 + 4×1.5 + 1.07） | 1000 | |
| Twin mast | 8.14（4×1.5 + 2.14） | 3000 |
| 14.14（10×1.5 + 2.14） | 2400 | |
| 17.14（4×0.8 + 8×1.5 + 2.14） | 2000 | |
| 20.34（4×0.8 + 10×1.5 + 2.14） | 1700 | |
| 23.34（4×0.8 + 10×1.5 + 2.14） | 1400 |
Note：Driving Platform Length：1.07m；
Short Platform Length： 0.8m；
Long Platform Length： 1.5m。
Brief introduction of the equipment:
1 Basic Models
The equipment has two basic models, that is, single mast installation and twin mast installation. Single mast platform is short for what is below construction lift platform of single mast installation model, and twin mast platform is short for what is below construction lift platform of twin mast installation model.

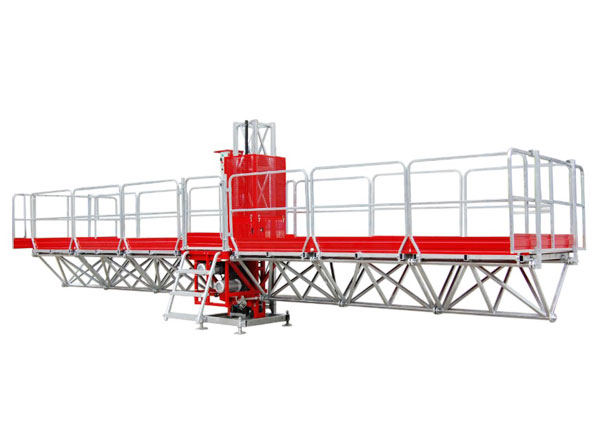

2 Single mast platform (Figure 1)
It is mainly composed of mast 1, drive platform 2, long guardrail 3, short guardrail 4, short platform 5, long platform 6, pedestal 7, stairway 8, side guardrail 9, tie-in 10, electronic control system 11
Figure 1
3 Twin mast

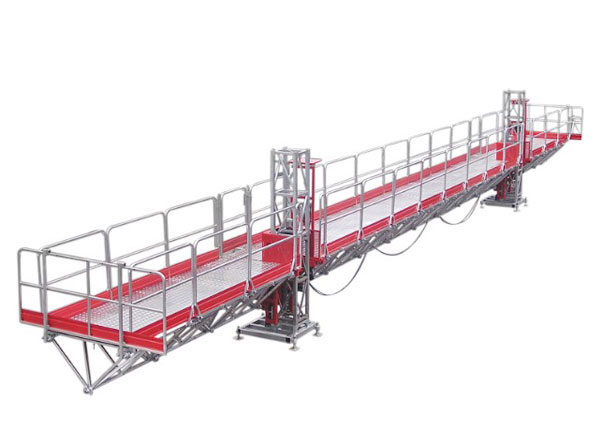

Twin mast C (Figure 2) is combined by Single mast A and Single mast B.
Figure 2
4 Feature of the equipment
Our equipment is able to be the concave convex platform which coincides with the building out-wall surface by changing the length and width of platform and part telescopic according to different shape of outdoor surface for the high buildings in order to feed all building works’ requirements.
Our equipment is indispensable building machinery in the out-wall surface work of high buildings. There is no need to make the prefabricated foundation at the time of using. And it is very convenient to change the work position.
